NVR 32 canale Hikvision; Rezolutie 12MP 4K; Suporta 16 canale cu POE; Compresie video H.265; Suporta 2 HDD SATA de maximum 6 TB fiecare (nu sunt incluse); Functie Plug and Play.
Tranzacțiile electronice sunt 100% sigure. Folosim protocolul HTTPS
Livrăm la cerere prin orice curier rapid sau de la sediu
Verificarea coletului la primire
Descarcati brosura HIKVISION DS-7732NI-I4/16P

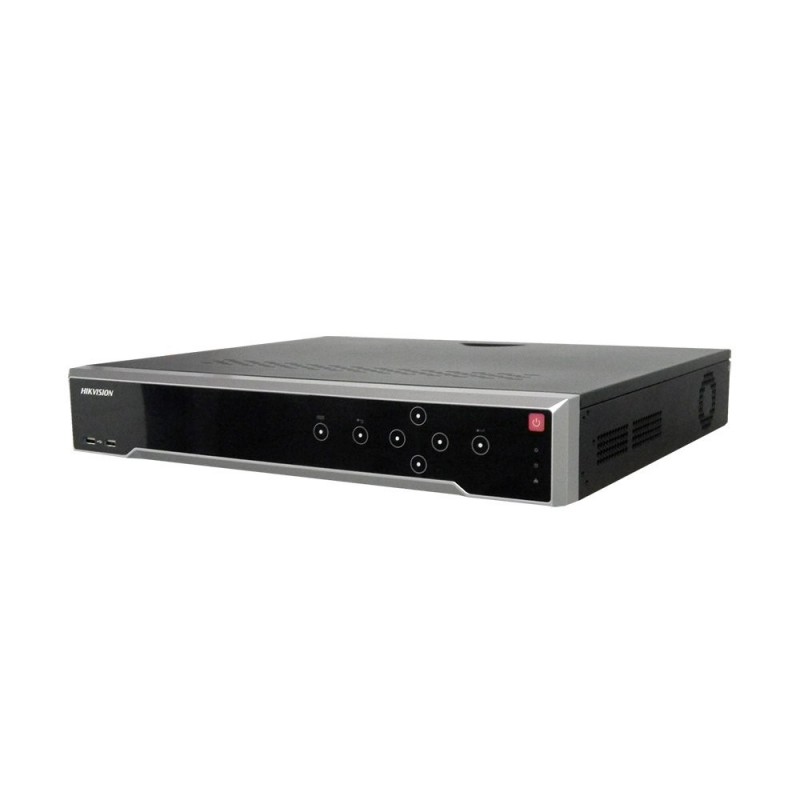

NVR 32 CANALE HIKVISION DS-7732NI-I4/16P 4K POE
• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
• 32-ch network cameras can be connected with 160M/256M incoming bandwidth
• Up to 4 SATA interfaces
• Plug & Play with up to 16 independent PoE network interfaces
• Support dual-os to ensure high reliablility of system running
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video formats
Specificatii tehnice:
Video/Audio Input
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input: 32-ch
Network
Remote connection: 128
Incoming bandwidth: 256Mbps
Outgoing bandwidth: 256Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback: 16-ch
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability: 4-ch@8MP,16-ch@1080P
Live view / Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA: 4 SATA interfaces for 4HDDs
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: RS-232; RS-485;
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
POE
Supported Standard: AF and AT
Interface: 16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power: 200W
General
Power Supply: 100 to 240 VAC
Consumption(without hard disk and POE): ≤20 W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity: 10 % ~ 90 %
Chassis: 19-inch rack-mounted 1.5U chassis
Dimensions: 445 × 390 × 70 mm (17.5"× 15.3" × 2.8")
Weight(without HDD): ≤ 5 Kg (11 lb)
